COSEC ATOM RD100K

Name: COSEC ATOM RD100K
Brand: Matrix

RFID Card and Bluetooth®-based Access Control Reader

Back to Products

Matrix

COSEC ATOM RD100K

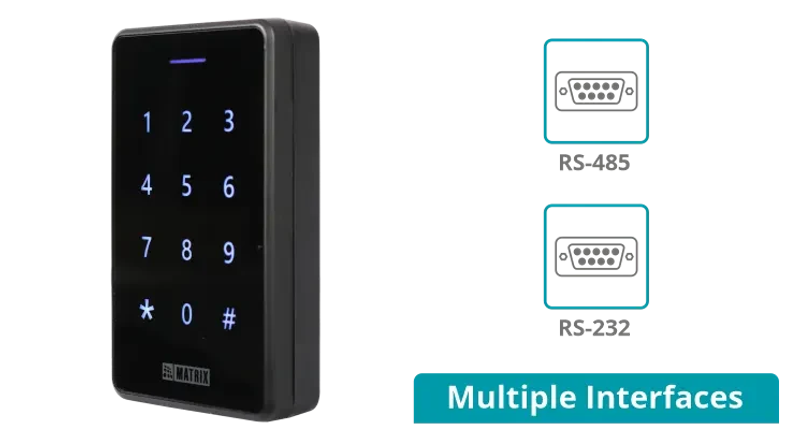

COSEC ATOM RD100K is a compact RFID card and Bluetooth-based access control reader with a backlit touch-sense keypad, supporting PIN, BLE, and RFID card credentials for multi-factor verification. Built with full-frontal Gorilla Glass, it is scratchproof, impact resistant, and vandal resistant for reliable indoor and outdoor use. It connects to third-party door controllers via a Wiegand interface and to COSEC master devices over RS-232 or RS-485. Ideal for offices, banks, data centers, and healthcare facilities.

Interested in this product?

Get in Touch

Key Features

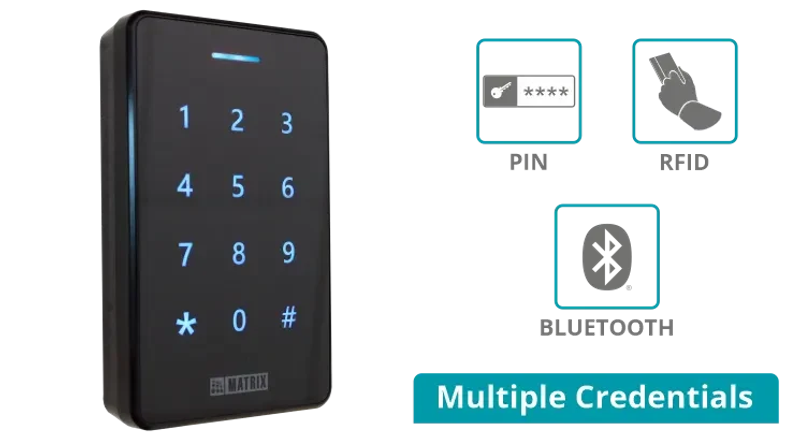

Multi-credential support — PIN, BLE, and RFID card
Backlit touch-sense keypad for PIN entry
Multi-factor credential support for high-security applications
Supports third-party door controllers via Wiegand interface
Secure data transmission with SSL encryption (snoop-proof and hack-proof)
Tamper detection with instant alerting against vandalism

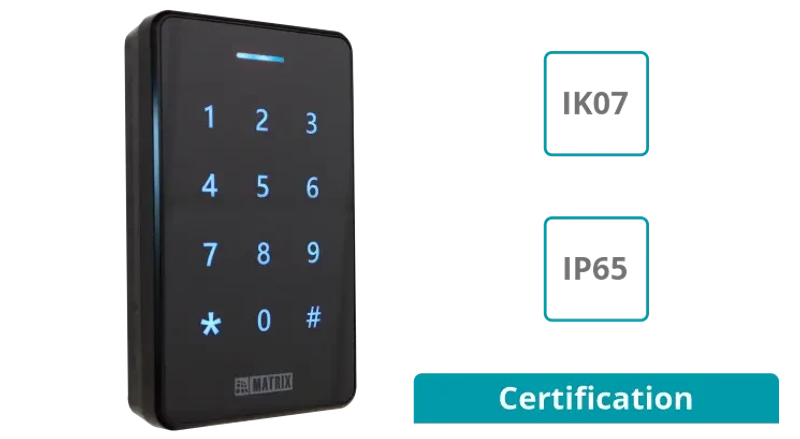

Weather resistance with IP65 ingress protection
Vandal resistance with IK07 rating
Full-frontal Gorilla Glass 3 — scratchproof, impact and vandal resistant

Approvals & Certifications

CEFCCRoHSBIS

Connectivity

Bluetoothrs485

Physical Specifications

Weight140 gms (0.30 Lbs)Dimensions60 x 101 x 19 mmOperating Temp.0°C to +55°CIP RatingIP65

Interested in this product?

Contact our sales team for more information.

Get in Touch

Quick Info

Brand: Matrix
Model: ATOM RD100K
IP Rating: IP65
Operating Temperature: 0°C to +55°C

Downloads & Resources

COSEC ATOM RD100K Datasheet

Model Variants

Model	RF Technology
ATOM RD100KE EM Prox	EM Proximity Card
ATOM RD100KM MIFARE	MIFARE Classic, MIFARE Plus, MIFARE DESFire EV1/EV2/EV3 & NFC Tag
ATOM RD100KI HID iCLASS / Multi-tech	HID iCLASS, HID Prox, HID SEOS, MIFARE Classic, MIFARE DESFire, MIFARE Plus, and EM Prox cards
