Technoton DUT-E S7

Technoton

Technoton DUT-E S7

IoT Enabled

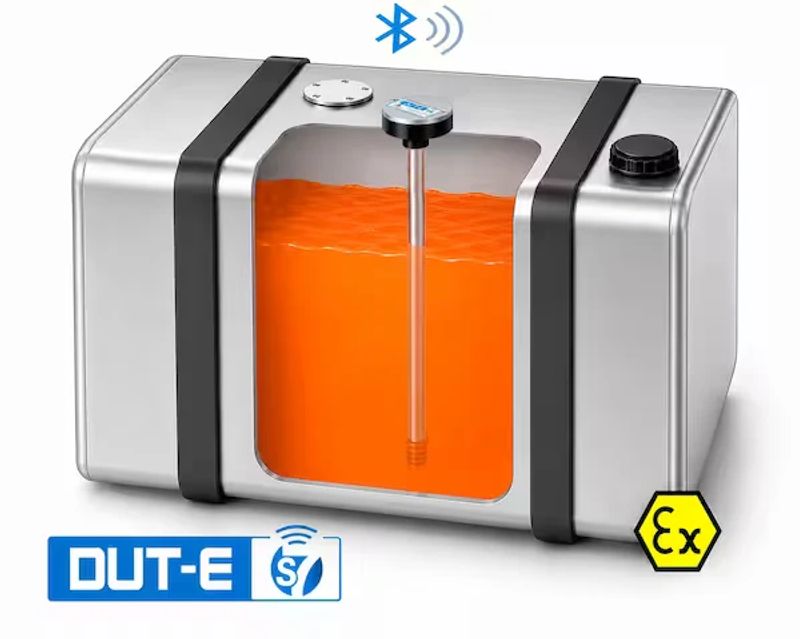

Wireless capacitive fuel level sensor that transmits data over Bluetooth 4.1 using the Technoton S7 bus wireless network protocol. Battery-powered with at least 5 years battery life, conversion reduced error within ±1.0% of the measuring part length, and an explosion-protection marking 0Ex ia IIA T4 X.

Interested in this product?

Get in Touch

Key Features

Wireless fuel level measurement via Bluetooth 4.1 (S7 bus)
Conversion reduced error within ±1.0% of measuring part length
Battery life not less than 5 years (no wiring required)
Line-of-sight transmission distance not less than 50 m
Tx power +4 dBm, Rx sensitivity -88 dBm
Explosion-protection marking 0Ex ia IIA T4 X
Bluetooth module RED/FCC/IC certified
24-month warranty, 5-year service life

Approvals & Certifications

EACRED No. 0051-RED-0011FCC ID S9NSPBTLERFIC 8976C-SPBTLERF

Hazardous Area Certifications

0Ex ia IIA T4 X

Physical Specifications

Operating Temp.-30 to +80 °CIP RatingIP55, ip57

Interested in this product?

Contact our sales team for more information.

Get in Touch

Quick Info

Brand: Technoton
Model: DUT-E S7
Sensor Type: Fuel Sensor
Interface: BLE
IP Rating: IP55, IP57
Operating Temperature: -30 to +80 °C

Downloads & Resources

DUT-E S7 Specification DUT-E S7 Operation Manual
