Technoton DUT-E GSM

Back to Products

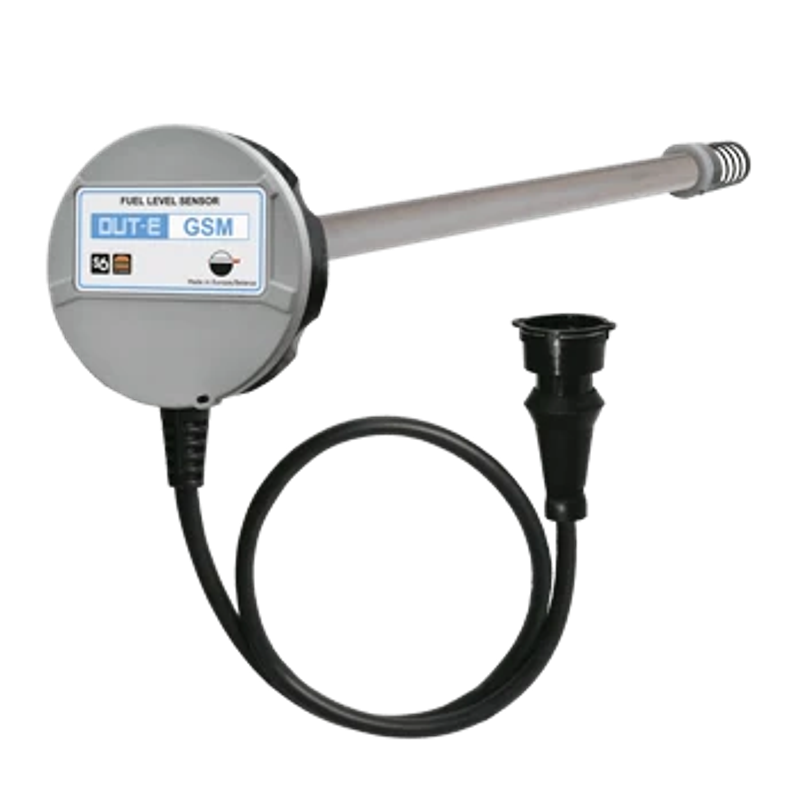

Technoton DUT-E GSM - Image 1
Technoton

Technoton DUT-E GSM

Autonomous capacitive fuel level sensor that measures fuel level in vehicle tanks and additionally monitors vehicle location in real time. Output corresponds to the GSM-850/900/1800/1900 cellular standard using the Wialon IPS v.2.0 protocol, with an internal buffer of at least 50,000 reports, and also provides a CAN 2.0B (SAE J1939) interface. Conversion reduced error is within ±1.0% of the measuring part length.

Interested in this product?

Get in Touch

Key Features

  • Measures fuel level and monitors vehicle location in real time
  • Conversion reduced error within ±1.0% of measuring part length
  • Built-in cellular output: GSM-850/900/1800/1900, Wialon IPS v.2.0 protocol
  • CAN 2.0B interface conforming to SAE J1939
  • Internal data buffer of at least 50,000 reports (factory settings)
  • Wide supply voltage range 10-45 V, pulse interference protection ≥100 V
  • K-Line ISO 14230 service line; ships with 7.5 m cable
  • 36-month warranty, 5-year service life

Approvals & Certifications

EACISO 9001

Physical Specifications

Operating Temp.-40 to +85 °CIP RatingIP55, ip57
