Technoton DFM Industrial

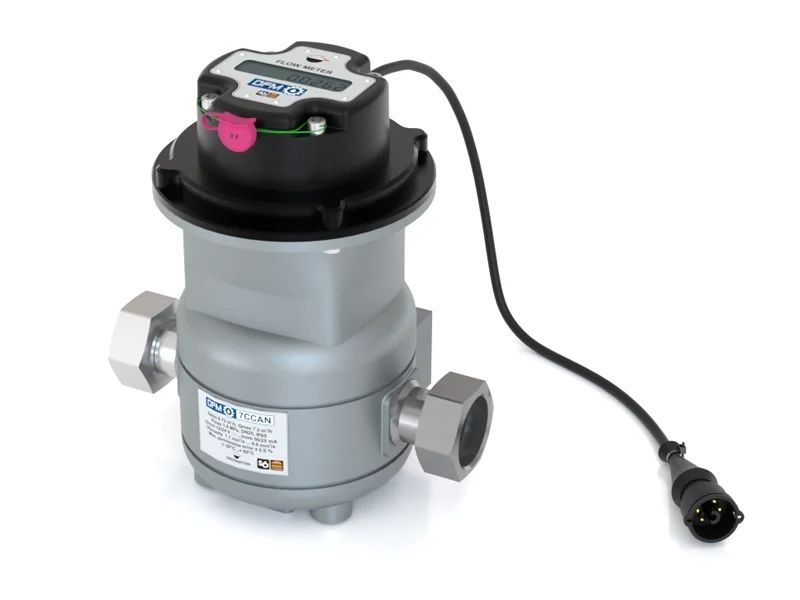

Flow meter for measuring the flow rate of non-corrosive liquids in the petrochemical and other industries, utilities, heat-power equipment, power plants and water transport. Models DFM 7 and DFM 25 cover flow rates up to 7.2 and 25 m³/h respectively with ±0.5% inaccuracy. Offered with a normalized pulse output or a CAN 2.0B interface conforming to SAE J1939, with IP65 protection.

Interested in this product?

Get in Touch

Key Features

Measures flow rate of non-corrosive liquids in industrial, utility and power applications
Models DFM 7 (Qmax 7.2 m³/h) and DFM 25 (Qmax 25 m³/h), inaccuracy ±0.5%
Output options: normalized pulse or CAN 2.0B (SAE J1939)
Max working pressure 1.6 MPa; pressure loss not more than 0.03 MPa
Kinematic viscosity range 0.55-6 mm²/s
Thread/flange connection — DFM 7: DN 25 M42×2; DFM 25: DN 40
High ingress protection rating IP65
Optional LCD display; 10-year service life, MTBF ≥60,000 h

Approvals & Certifications

ISO 9001:2015

Physical Specifications

Operating Temp.-20 to +60 °CIP RatingIP65

Interested in this product?

Contact our sales team for more information.

Get in Touch

Quick Info

Brand: Technoton
Model: DFM Industrial
Sensor Type: Flow Meter
Interface: RS-485, CAN
IP Rating: IP65
Operating Temperature: -20 to +60 °C

Downloads & Resources

DFM Industrial Specification DFM Industrial Operation Manual
