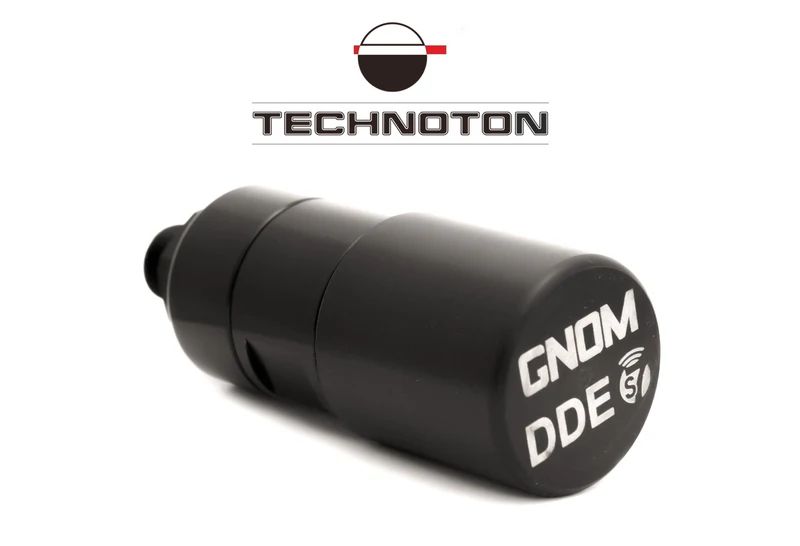

Technoton GNOM DDE S7

Technoton

Technoton GNOM DDE S7

IoT Enabled

Wireless (Bluetooth) pressure sensor for pneumatic suspension systems of vehicles, used for axle load determination within transport telematics systems. Transmits over the Technoton S7 wireless bus using a Bluetooth 4.1 interface and runs on an internal battery rated for at least 5 years.

Interested in this product?

Get in Touch

Key Features

Wireless pressure sensor for air / pneumatic-suspension systems
Pressure measurement range 0.1-1.4 MPa
Bluetooth 4.1 interface over Technoton S7 wireless bus
Battery life at least 5 years (no external power required)
Line-of-sight range at least 50 m
M16×1.5 connection thread (M22×1.5 with adapter from MK DDE #1 kit)
Operating temperature -40 to +80 °C, IP67
RED / FCC / IC certified Bluetooth module

Approvals & Certifications

RED No. 0051-RED-0011FCC ID S9NSPBTLERFIC 8976C-SPBTLERF

Physical Specifications

Operating Temp.-40 to +80 °CIP RatingIP67

Interested in this product?

Contact our sales team for more information.

Get in Touch

Quick Info

Brand: Technoton
Model: GNOM DDE S7
Sensor Type: Weight Sensor
Interface: BLE
IP Rating: IP67
Operating Temperature: -40 to +80 °C

Downloads & Resources

GNOM DDE S7 Specification GNOM DDE S7 Operation Manual
