Technoton GNOM DP S7

IoT Enabled

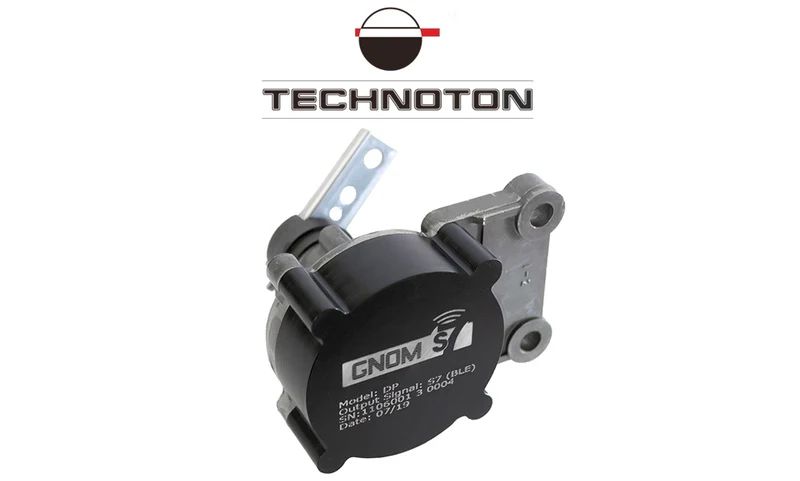

Wireless (Bluetooth) shift sensor for determining axle load and cargo mass on leaf-spring-suspension vehicles within transport telematics systems. Transmits over the Technoton S7 wireless bus using a Bluetooth 4.1 interface and runs on an internal battery rated for at least 5 years.

Interested in this product?

Get in Touch

Key Features

Wireless axle load / shift sensor for leaf-spring suspension
Bluetooth 4.1 interface over Technoton S7 wireless bus
Battery life at least 5 years (no external power required)
Line-of-sight range at least 50 m
Lever rotation measuring range 0-360°
Inaccuracy ±1.5%
Operating temperature -40 to +80 °C, IP55
RED / FCC / IC certified Bluetooth module

Approvals & Certifications

RED No. 0051-RED-0011FCC ID S9NSPBTLERFIC 8976C-SPBTLERF

Physical Specifications

Operating Temp.-40 to +80 °CIP RatingIP55

Interested in this product?

Contact our sales team for more information.

Get in Touch

Quick Info

Brand: Technoton
Model: GNOM DP S7
Sensor Type: Weight Sensor
Interface: BLE
IP Rating: IP55
Operating Temperature: -40 to +80 °C

Downloads & Resources

GNOM DP S7 Specification GNOM DP S7 Operation Manual
