UbiBot GS1-PL4G1RS
4G Environmental Data Logger with GNSS for Cold Chain Monitoring
Back to Products
UbiBot
UbiBot GS1-PL4G1RS

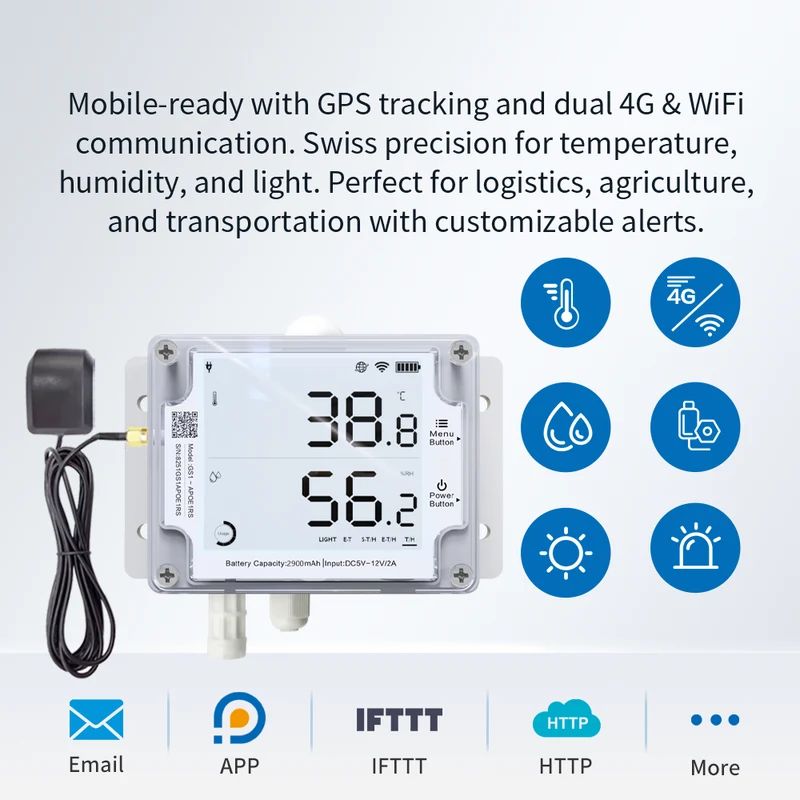

Industrial-grade cloud-based environmental monitoring data logger with WiFi and 4G connectivity, built-in GNSS positioning, and RS485 external sensor support. Features high-precision temperature (±0.3°C), humidity (±3%), and ambient light sensors with real-time cloud sync to the UbiBot IoT platform. IP65 dustproof and water-resistant with a 4-inch LCD display and 300,000-record local storage for offline data resume. Designed for cold-chain transport monitoring, warehouse environmental control, and industrial asset tracking with FDA CFR21 compliance.
Interested in this product?
Get in TouchKey Features
- Built-in GNSS positioning for real-time location tracking of refrigerated vehicles and assets
- High-precision temperature (±0.3°C), humidity (±3%), and ambient light (±2%) sensors
- WiFi 2.4GHz and 4G LTE dual connectivity with free UbiBot Global SIM card included

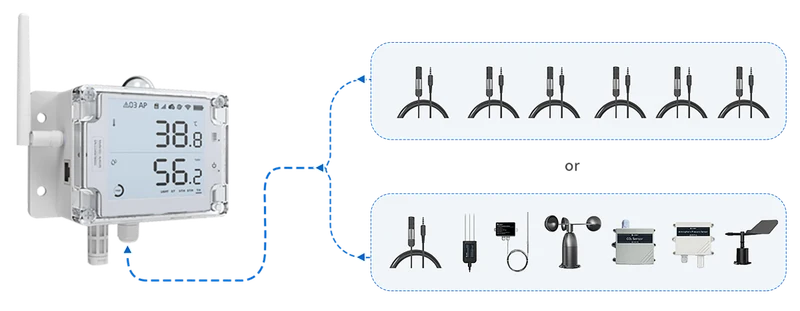

- RS485 interface supporting multiple external probes: TH30S-B, Soil, PT-100, Wind Speed, CO2
- IP65 dustproof and water-resistant industrial-grade ABS & PC housing
- 4-inch LCD screen with backlight for on-site environmental data display
- 300,000-record local storage with automatic offline data resume on reconnection
- Triple power supply: internal 2900mAh lithium battery, Type-C 5V, and DC 12V
- Real-time alerts via app notifications, email, phone calls, SMS, and HTTP webhooks
- FDA CFR21 compliant with CE, EN 12830, FCC, IC, RCM, RoHS, and TELEC certifications
Approvals & Certifications
CEEN 12830FCCFDA CFR21ICRCMRoHSTELEC
Ports & Interfaces
RS-485
×1
Bidirectional
USB
×1
Bidirectional
Cellular
×1
Bidirectional
lte-cat-4, 2g, 3g
Connectivity
CellularWiFi
Physical Specifications
Weight450gOperating Temp.-20°C to 60°CIP RatingIP65
Quick Info
- Brand
- UbiBot
- Model
- GS1-PL4G1RS
- Interface
- RS-485, USB
- Device Type
- Asset & Portable Trackers
- Connectivity
- LTE Cat-4, 2G, 3G
- Suitable For
- Cold ChainStationary Asset
- IP Rating
- IP65
- Operating Temperature
- -20°C to 60°C
Downloads & Resources
Model Variants
| Model | Connectivity | GNSS | RS485 | IP Rating | Battery Life |
|---|---|---|---|---|---|
GS1-A WiFi Only | WiFi | No | No | IP65 | 4-6 months (WiFi) |
GS1-A4G WiFi + 4G | WiFi / 4G | No | No | IP65 | 4-6 months (WiFi), 3-6 weeks (SIM) |
GS1-PL4G1RS WiFi + 4G + GNSS + RS485 | WiFi / 4G | Yes | Yes | IP65 | 1-2 weeks (GNSS active) |
GS1-A1RS WiFi + RS485 | WiFi | No | Yes | IP65 | 4-6 months (WiFi) |
GS1-AL4G1RS WiFi + 4G + RS485 | WiFi / 4G | No | Yes | IP65 | 4-6 months (WiFi), 3-6 weeks (SIM) |
GS1-AETH1RS WiFi + Ethernet + RS485 | WiFi / RJ45 | No | Yes | None | 3-5 days |
