Technoton 1708Crocodile

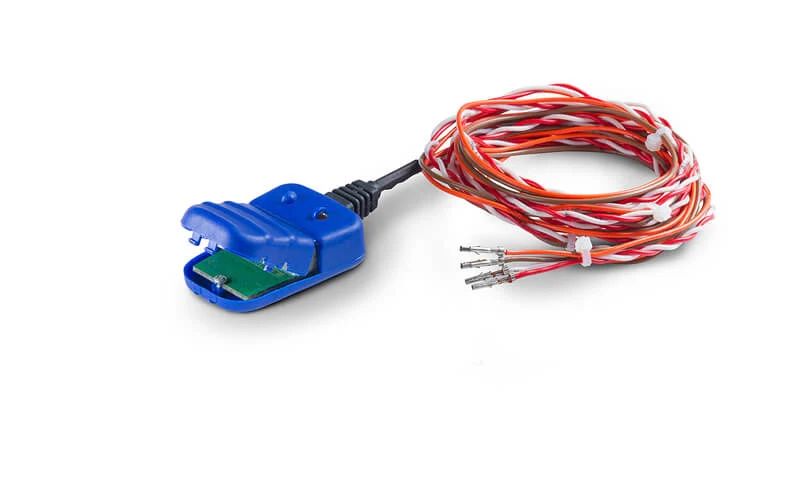

Contactless reader designed to securely obtain vehicle operation data from an on-board J1708 bus (SAE J1587) without cutting wire insulation. Its output interface is J1708 per SAE J1587; when reading an RS-485 bus the output corresponds to the RS-485 standard. Installed on vehicles equipped with a J1708 bus such as American/Volvo trucks and John Deere tractors.

Interested in this product?

Get in Touch

Key Features

Contactless reading of on-board J1708 (SAE J1587) bus through wire insulation
Output interface J1708 per SAE J1587; RS-485 output when reading RS-485 bus
Protects vehicle electronics from active requests by the telematics unit
Powered from 10-45 V on-board network; reverse-polarity protected
Acceptable message losses not more than 1%
J1708 differential signal, amplitude 0-5 V on J1708.A/J1708.B wires
Compatible with tracking devices having a J1708 or RS-485 input
Compatible with SAE J1587 and RS-485

Approvals & Certifications

E20 10R-04 1536CEISO 9001:2015

Physical Specifications

Operating Temp.-40 to +85 °CIP RatingIP30

Interested in this product?

Contact our sales team for more information.

Get in Touch

Quick Info

Brand: Technoton
Model: 1708Crocodile
IP Rating: IP30
Operating Temperature: -40 to +85 °C

Downloads & Resources

Crocodile Family Leaflet Crocodile Operation Manual
