VEGA VEGABAR 39
Pressure sensor with switching function

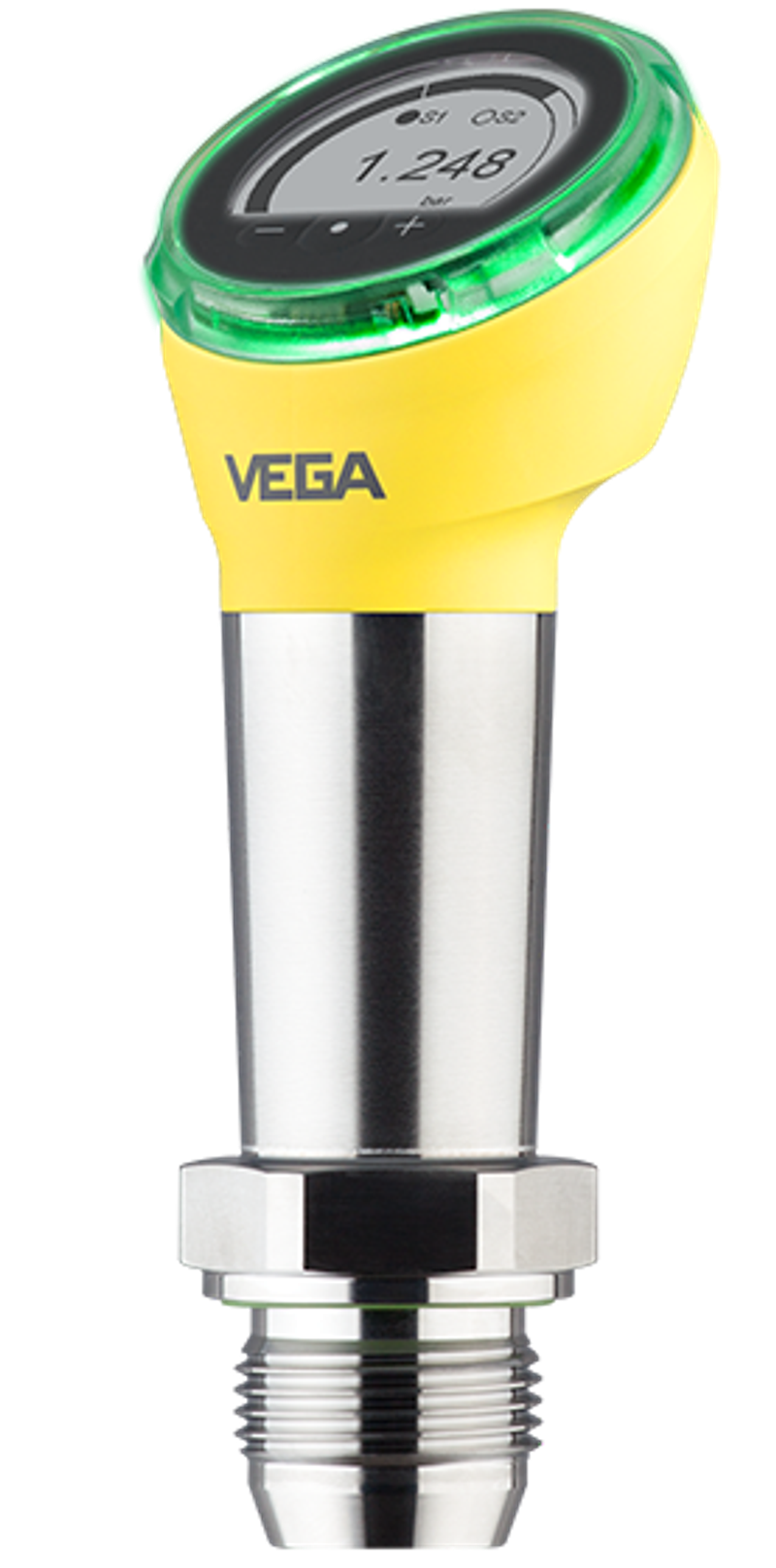

Thread G½, EN837; manometer connection / 316L
Thread G1, ISO228-1; cone 40°, front-flush / 316L (Ra<0.76µm); for hygienic adapter metallic sealing

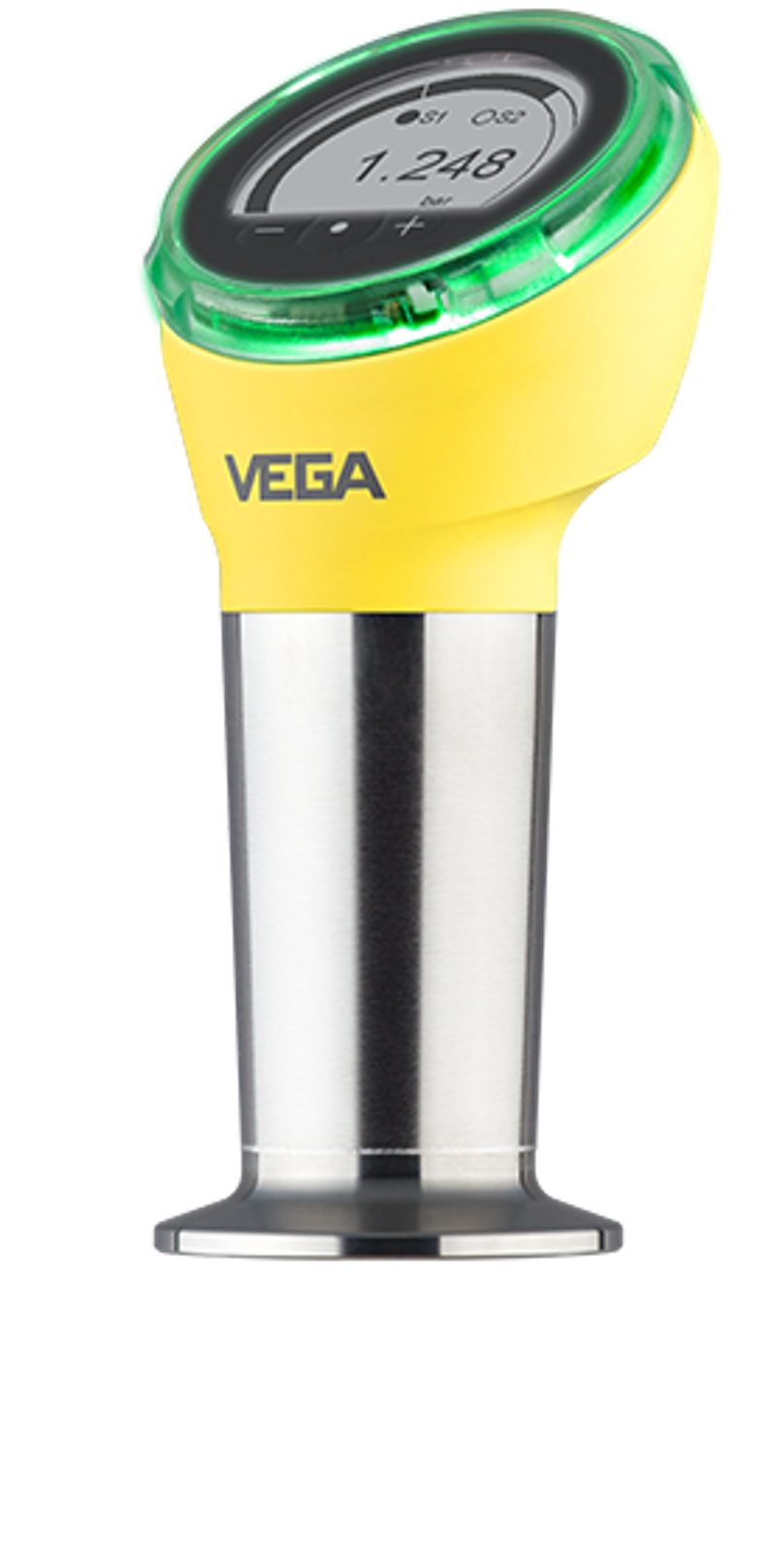

Clamp 1" PN40 (ø50.5mm) DIN32676, ISO2852; front-flush / 316L (Ra<0.76µm)
VEGABAR 39
VEGA VEGABAR 39
From thread ½", hygienic connections, universal connection G1" for hygiene adapter, 4 ... 20 mA, three-wire: PNP/NPN, 4 ... 20 mA, IO-Link, Ex and hygiene approval, coloured 360° status display, on-site display and 3-button operation VEGABAR 39 is a universal pressure transmitter with a metallic measuring cell for measuring gases, vapours and liquids up 130 °C. The optional universal connection for hygienic adapters ensures reduced installation effort and leaner stock keeping. The sensor has a display with on-site operation and coloured 360° status display.
Interested in this product?
Get in TouchKey Features
- Coloured 360° status display, display and on-site operation with VDMA menu structure
- Universally applicable due to fully welded metallic measuring cell
- Easy integration into control systems through IO-Link communication
Output Signals
Approvals & Certifications
Use Case Area
Physical Specifications
Quick Info
- Brand
- VEGA
- Model
- VEGABAR 39
- IP Rating
- IP66, IP67
- Operating Temperature
- -40 ... 70 °C
- Detection Type
- Hydrostatic
- Measurement
- Level
