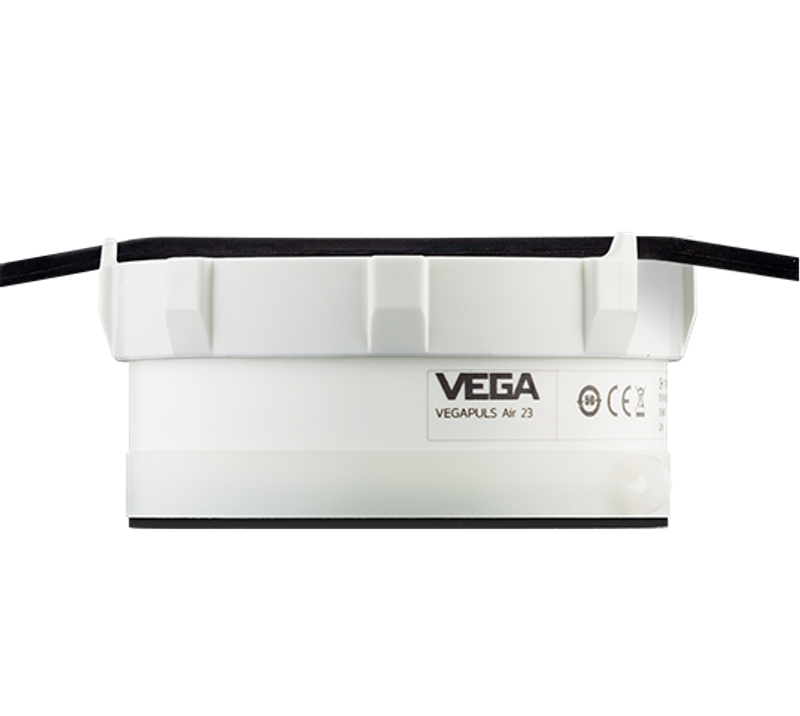

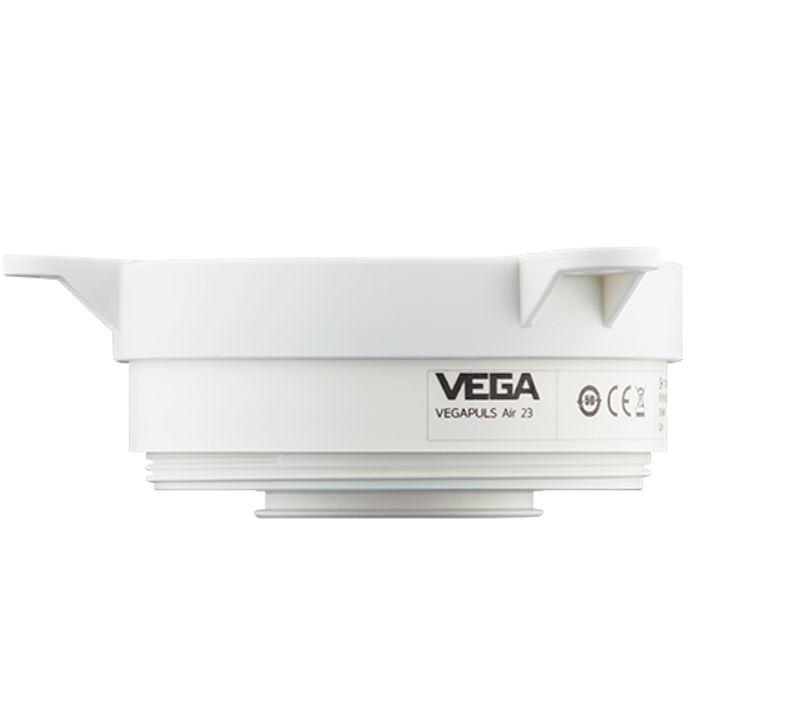

VEGA VEGAPULS Air 23

Name: VEGA VEGAPULS Air 23
Brand: VEGA

Autarkic, continuous level measurement in plastic vessels

Back to Products

Adhesive joint (antenna side)

Flexible interchangeable bracket

Ceiling mounting

VEGA

VEGAPULS Air 23

VEGA VEGAPULS Air 23

Radar LevelLevel

NB-IoT/CAT-M1, LoRa, measuring range up to 3m, accuracy +/-5mm

Interested in this product?

Get in Touch

Key Features

Exact measuring results independent of medium, process and ambient conditions
Maintenance-free operation due to non-contact 80 GHz radar technology
Easy installation thanks to autarkic voltage supply and radio technology

Output Signals

LoRa

Use Case Area

VEGAPULS Air 23 is the ideal sensor for level measurement in IBCs and plastic vessels. The instrument measures through the closed vessel ceiling and is suitable for nearly all liquids and bulk solids. VEGAPULS Air 23 is quickly mounted by simple and reliable adhesive, ceiling or tension belt mounting. Since no additional power supply is necessary, the autarkic sensor offers a particularly economical solution. The sensor housing with high protection rating IP69 enables maintenance-free continuous operation even outdoors or when cleaning the vessel.
