Promag MP300T

High Frequency Multi Technology RFID Reader

GigaTMS

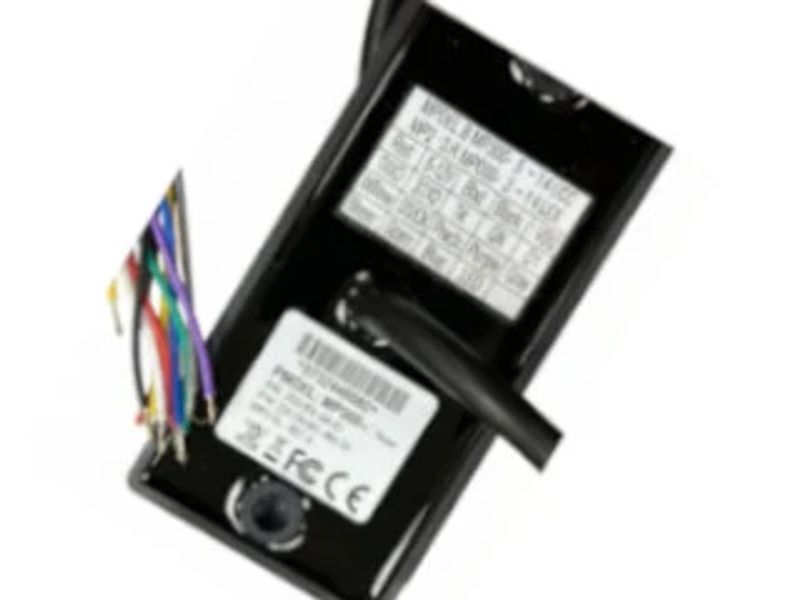

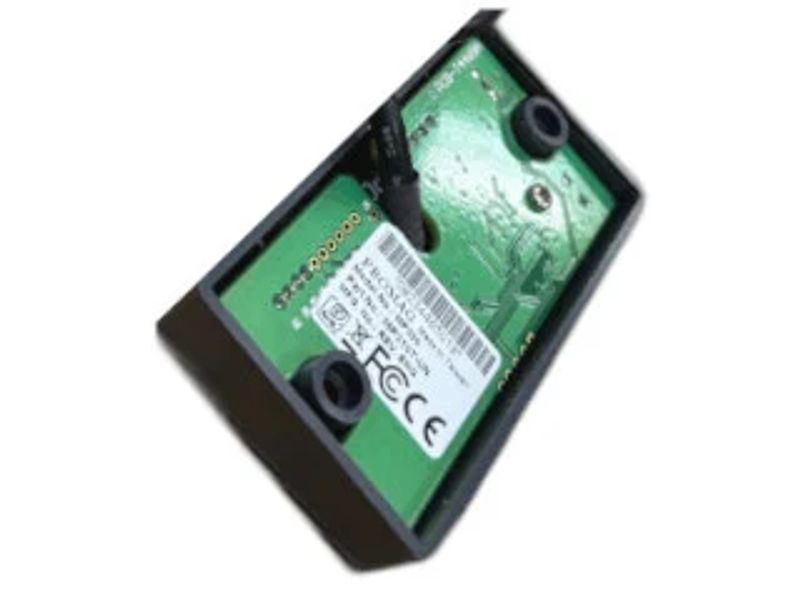

Promag MP300T

The MP300T is a versatile multi-proximity configurable 13.56MHz RFID reader supporting ISO 14443A, ISO 14443B, ISO 15693, and NFC 1-4 tags. Designed for seamless integration with vehicle trackers and access control systems via multiple output interfaces including 1-Wire, USB, Wiegand, RS232, and RS485. Its broad card compatibility and anti-collision algorithm make it ideal for multi-card handling environments.

Interested in this product?

Get in Touch

Key Features

13.56MHz multi-technology reader supporting ISO 14443A/B, ISO 15693, and NFC 1-4 tags
Anti-collision algorithm for multi-card handling
Multiple output interfaces: 1-Wire, USB, Wiegand, RS232, RS485
Configurable baud rate: 19200 bps default (2400-115200 available)
Wide power range: 5-48 VDC
Broadest card compatibility — reads any 13.56MHz card on the market
Internal LED and buzzer for read status
Compact design with optional piano finish cover

Ports & Interfaces

1-Wire1-Wire

×1

Bidirectional

1-Wire data interface (manufacturer confirmed)

RS-232RS232

×1

Bidirectional

RS232 TX/RX interface

Physical Specifications

WeightN/A

Interested in this product?

Contact our sales team for more information.

Get in Touch

Quick Info

Brand: GigaTMS
Model: MP300T
Interface: 1-Wire, USB, RS-232, RS-485

Downloads & Resources

Promag MP300T Datasheet
