Ruptela Pro5S

Back to Products

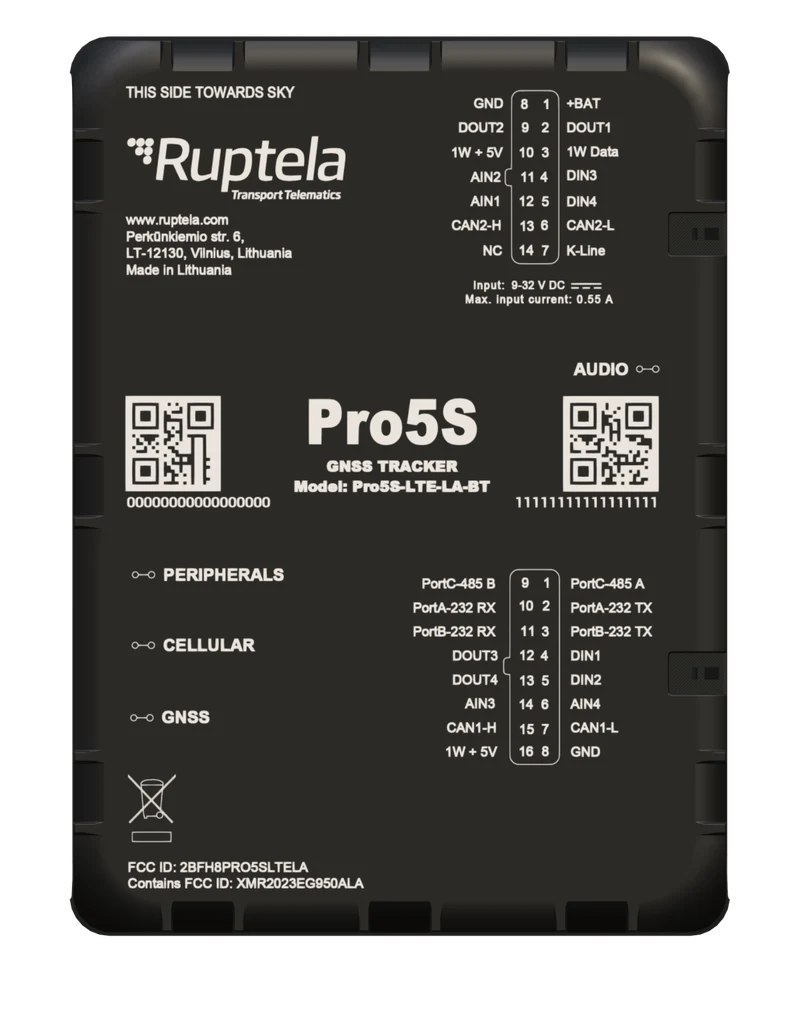

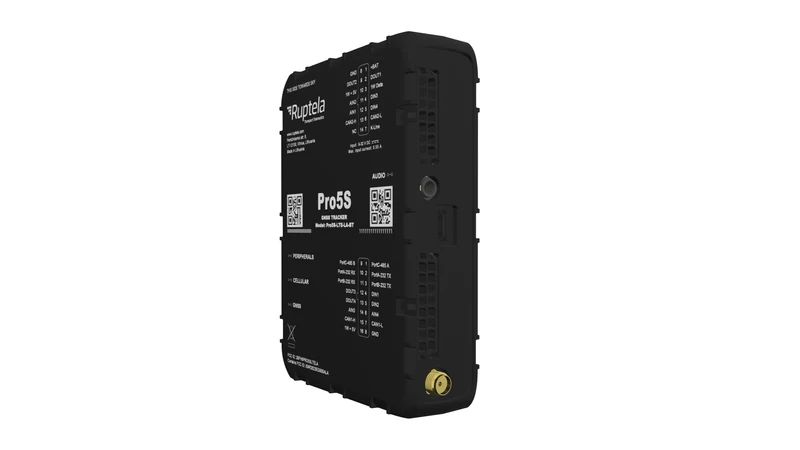

Ruptela Pro5S GNSS tracker LTE CAT4 3G BLE module CANbus interface RS232 ports RS485 ports 14 pin connector 16 pin connector micro USB audio port plastic housing
Ruptela

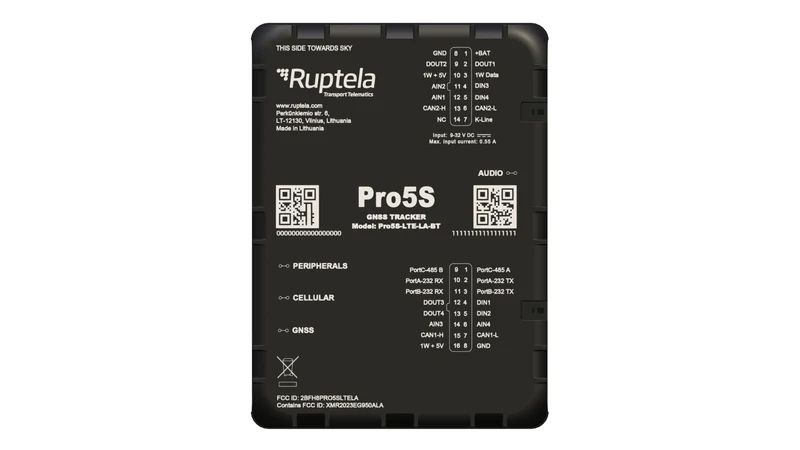

Ruptela Pro5S

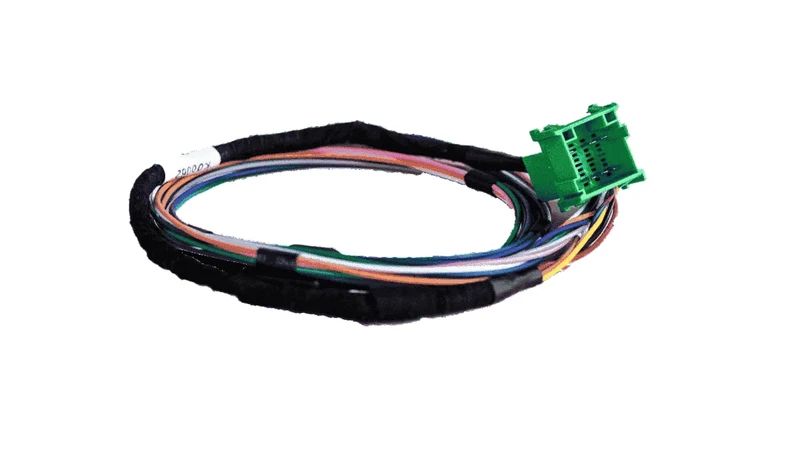

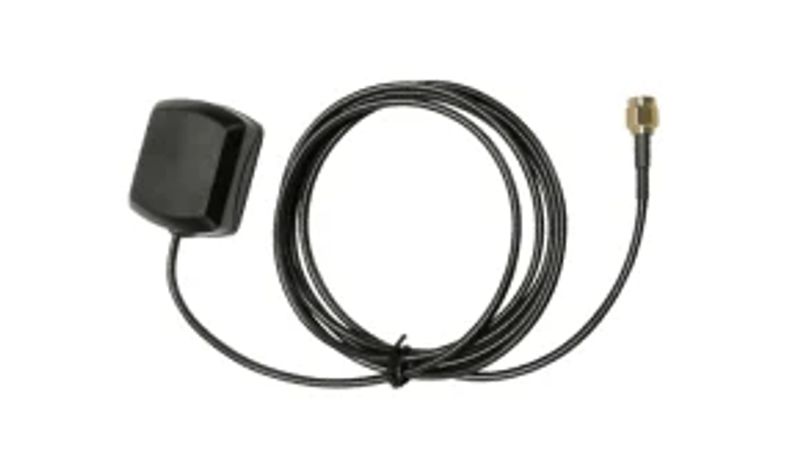

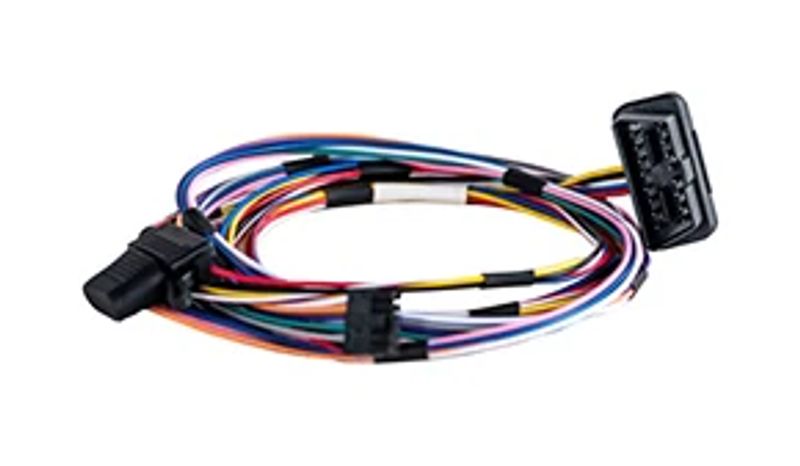

Pro5S is a professional GPS tracker built for LATAM fleets, combining reliable 4G+3G connectivity with audio communication for direct driver interaction. It ensures precise positioning with a Swiss-made u-blox GNSS module supporting GPS, GLONASS, and Galileo, plus an option for an external antenna. The device reads CANbus and OBD data from 1,500+ vehicles via 2×CAN and 1×K-line, with CustomCAN for broader coverage. Compact and easy to install, Pro5S also offers Bluetooth 5.1, multiple I/Os, and safeguards such as tamper, jamming, and impact detection. Pro5S tracks driver conduct and vehicle performance in real time using 2xCAN interfaces and a 3-axis accelerometer. It monitors harsh braking, aggressive acceleration, cornering, idling, overspeeding, and fuel consumption, with parameters available from both conventional vehicles and EVs, to enhance fleet safety and support driver coaching. Advanced metrics, including engine load, RPM bands, cruise control usage, and compound performance indicators, enable proactive maintenance, efficient route planning, and evidence-based driver training. FMS Harness is designed for installing advanced trackers in trucks. It enables faster and easier setup, ensures professional installation, minimizes the risk of faulty wiring, and allows reliable CANbus data reading.

Interested in this product?

Get in Touch

Key Features

  • 4G+3G connectivity
  • CANbus & OBD data reading
  • 3.5 mm audio jack
  • Easy installation
  • Audio communication
  • Device Management Platform

Ports & Interfaces

RS-232
×2
Bidirectional
RS-485
×1
Bidirectional
CAN Bus
×2
Input
J1939
GPIO
×12
Bidirectional
2 digital in
Bluetooth LE
×?
Input
BLE 5.1
Cellular
×1
Bidirectional
lte-cat-4, 3g

Connectivity

BluetoothCellular
