Technoton CANCrocodile

Technoton

Technoton CANCrocodile

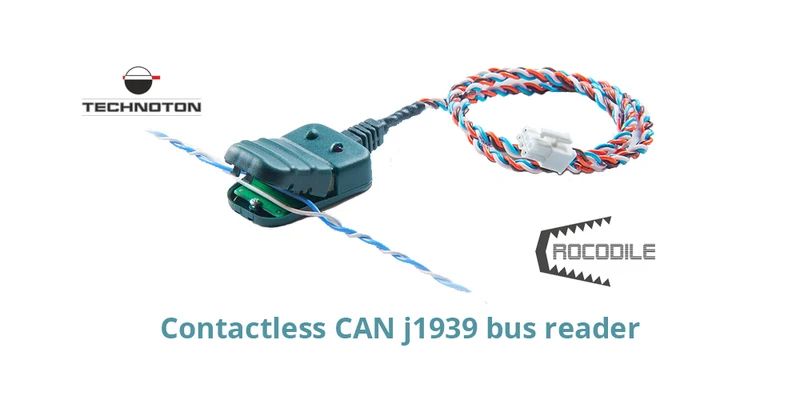

Contactless reader for vehicle telematics that reads CAN bus messages through wire insulation without cutting it or making electrical contact. Generates a digital CAN 2.0B (SAE J1939) output matching the connected bus, protecting the vehicle electronics from active requests by the telematics unit. Powered from the on-board network, no configuration required.

Interested in this product?

Get in Touch

Key Features

Contactless CAN bus reading through wire insulation, no integrity loss
Output interface CAN 2.0B per SAE J1939
Protects vehicle electronics from active requests by the telematics unit
Embedded 120 Ohm CAN termination resistor
Power-saving U12/24 A++ version with ultra-low standby current
Acceptable message losses not more than 1% (250-500 kbit/s)
Powered from 10-45 V on-board network, reverse-polarity protected
Compatible with SAE J1939, ISO 11992-2, CAN Open, DeviceNet, NMEA 2000

Approvals & Certifications

E20 10R-04 1536CEEACISO 9001:2015

Physical Specifications

Operating Temp.-40 to +85 °CIP RatingIP30

Interested in this product?

Contact our sales team for more information.

Get in Touch

Quick Info

Brand: Technoton
Model: CANCrocodile
IP Rating: IP30
Operating Temperature: -40 to +85 °C

Downloads & Resources

CANCrocodile Leaflet Crocodile Operation Manual
