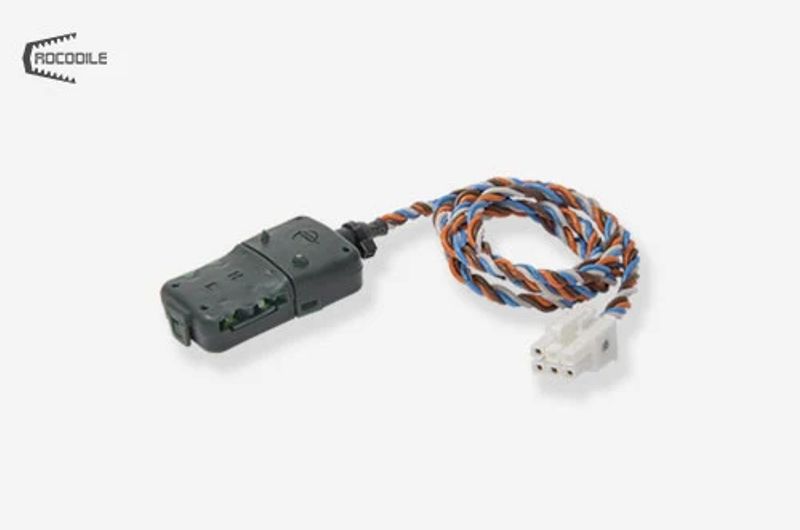

Technoton CANCrocodile Mini

Compact modification of the CANCrocodile contactless reader that reads CAN J1939 bus messages without cutting wire insulation or making electrical contact. Reduced dimensions ease installation in tight spaces. Outputs a CAN 2.0B signal to any telematics unit with a CAN port, with less than 1% message losses.

Interested in this product?

Get in Touch

Key Features

Contactless CAN J1939 reading through wire insulation
Output interface CAN 2.0B per SAE J1939
Reduced overall dimensions for tight-space installation
Sectional case for quick CAN-H / CAN-L wiring
Baud rate up to 1000 kb/s; no losses 0-500 kb/s, <1% at 500-1000 kb/s
Very low current consumption 5/3 mA at 12/24 V
Powered from 10-45 V on-board network
Compatible with SAE J1939, ISO 11992-2, CAN Open, DeviceNet, NMEA 2000

Approvals & Certifications

E20CEISO 9001

Physical Specifications

Operating Temp.-40 to +85 °CIP RatingIP30

Interested in this product?

Contact our sales team for more information.

Get in Touch

Quick Info

Brand: Technoton
Model: CANCrocodile Mini
IP Rating: IP30
Operating Temperature: -40 to +85 °C

Downloads & Resources

CANCrocodile Mini Leaflet Crocodile Operation Manual
