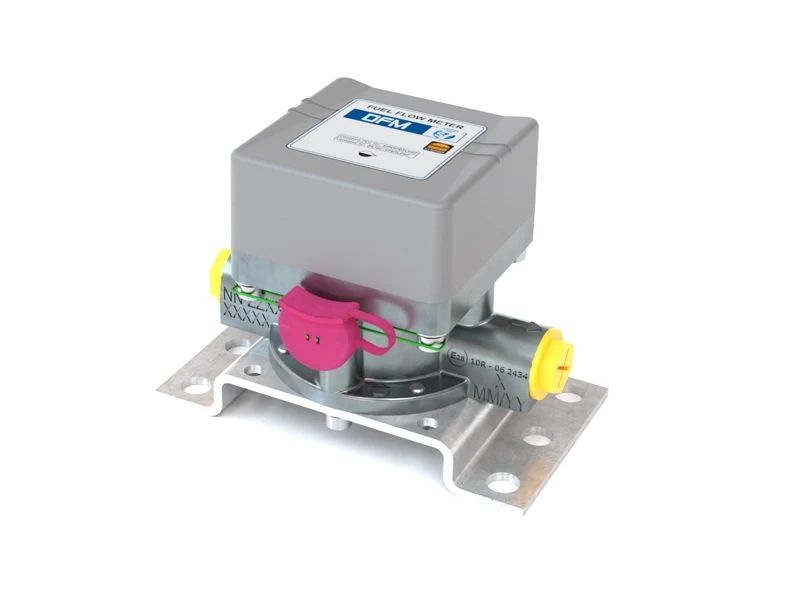

Technoton DFM S7

IoT Enabled

Wireless fuel flow meter for measuring diesel fuel consumption in engines of vehicles, boats, diesel generators, boilers and burners. Transmits data over Bluetooth 4.1 using the Technoton S7 bus telematics protocol and is battery-powered with at least 5 years battery life. Single-chamber and differential dual-chamber models cover flow ranges up to 500 L/h with ±1% inaccuracy.

Interested in this product?

Get in Touch

Key Features

Measures diesel fuel consumption in engines, generators, boilers and burners
Wireless data transmission via Bluetooth 4.1 (S7 bus)
Battery life not less than 5 years
Single-chamber models DFM 50/100/250/500, inaccuracy ±1%
Differential models DFM 100D/250D/500D, inaccuracy ±1 to ±3%
Line-of-sight distance not less than 50 m
Operating modes: idling, optimal, overload, tamper detection
CE / RoHS compliant; 24-month warranty, 5-year service life

Approvals & Certifications

CERoHSRED No. 0051-RED-0011FCC ID S9NSPBTLERF

Physical Specifications

Operating Temp.-40 to +85 °CIP RatingIP54

Interested in this product?

Contact our sales team for more information.

Get in Touch

Quick Info

Brand: Technoton
Model: DFM S7
Sensor Type: Flow Meter
Interface: BLE
IP Rating: IP54
Operating Temperature: -40 to +85 °C

Downloads & Resources

DFM S7 Specification DFM Leaflet
