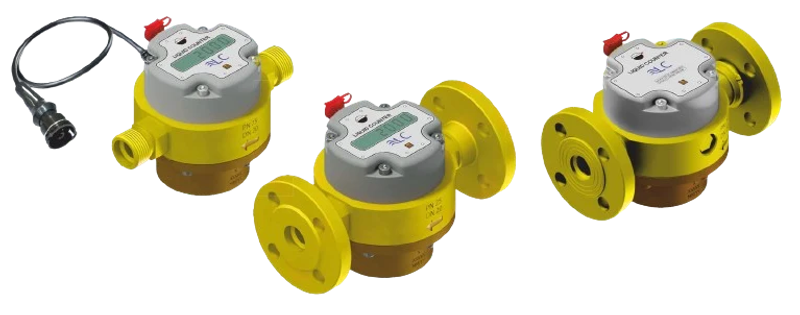

Technoton Liquid Counter

IoT Enabled

High-precision liquid counters for measuring liquid flow by mass and volume and for determining liquid density and temperature. The LC Corio range uses a Coriolis-force measuring principle with RS-485 (Modbus RTU) output and conversion to CAN J1939/S6, covering volume flow from 7 to 6,700 L/min with ±0.21% volume accuracy. The LC Ring range uses a ring-type chamber with autonomous, CAN J1939, pulse and Bluetooth interfaces, models 15/30/60 up to 66 L/min at ≤0.5% error.

Interested in this product?

Get in Touch

Key Features

Measures liquid flow by both mass and volume; LC Corio also determines density and temperature
LC Corio Coriolis principle, 7-6,700 L/min, volume accuracy ±0.21% / mass ±0.16%
LC Corio output RS-485 (Modbus RTU); CAN J1939/S6 via MasterCAN RS2CAN converter
Up to 16 LC Corio counters per single S6 telematics network
LC Ring ring-type chamber, models 15/30/60, max flow up to 66 L/min, error ≤0.5%
LC Ring interfaces: autonomous, CAN J1939, pulse, wireless (Bluetooth)
Flange or threaded connection; LC Corio liquid temp -60 to +100 °C
Applications: marine engines/generators, oil & gas, chemical industry, fuel dispensing

Physical Specifications

Operating Temp.LC Corio -60 to +100 °C; LC Ring up to 95 °C

Interested in this product?

Contact our sales team for more information.

Get in Touch

Quick Info

Brand: Technoton
Model: Liquid Counter
Sensor Type: Flow Meter
Interface: CAN, RS-485, Pulse, BLE
Operating Temperature: LC Corio -60 to +100 °C; LC Ring up to 95 °C

Downloads & Resources

LC Corio Liquid Counter Leaflet LC Ring Liquid Counter Leaflet
