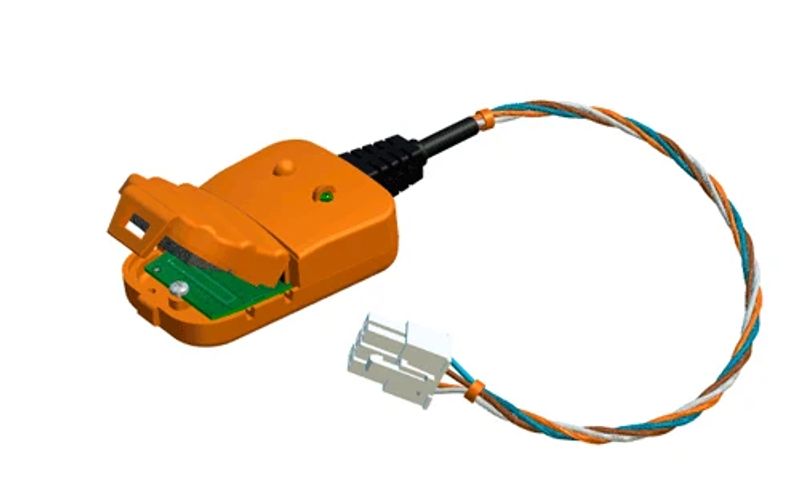

Technoton FMSCrocodile

Contactless reader-converter that reads data from a vehicle on-board CAN bus over the SAE J1939 protocol, processes and sorts the information, and transmits ready-to-use FMS and Telematics messages to the CAN J1939/S6 telematics interface. A two-in-one device — contactless reader plus FMS gateway — that protects the CAN bus from active requests and includes an automatic trip fuel-consumption counter.

Interested in this product?

Get in Touch

Key Features

Contactless CAN bus reading and conversion to CAN J1939/S6 (FMS / Telematics)
Input CAN (SAE J1939); output CAN J1939/S6 FMS and Telematics messages
Fixed unique network address SA = 122
Automatic trip fuel-consumption counter (min increment 0.5 l)
Protects CAN bus from active requests by the tracking device
Embedded 120 Ohm CAN termination resistor
Powered from 10-45 V on-board network; reverse-polarity protected
Compatible with SAE J1939 / ISO 11992-2

Approvals & Certifications

E20 10R-04 1536CEISO 9001:2015

Physical Specifications

Operating Temp.-40 to +85 °CIP RatingIP30

Interested in this product?

Contact our sales team for more information.

Get in Touch

Quick Info

Brand: Technoton
Model: FMSCrocodile
IP Rating: IP30
Operating Temperature: -40 to +85 °C

Downloads & Resources

FMSCrocodile Leaflet Crocodile Operation Manual
