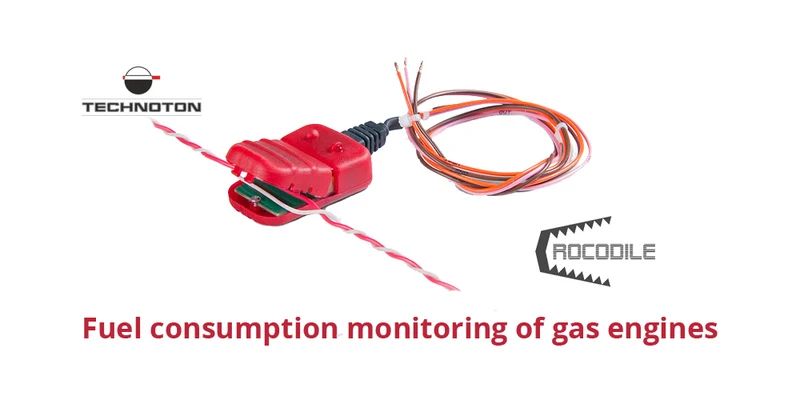

Technoton NozzleCrocodile

Contactless injector pulse reader that reads engine/LPG nozzle (injector) control impulses through wire insulation and converts them into normalized voltage pulses whose count is proportional to the volume of consumed fuel. Used for petrol and LPG fuel consumption monitoring on light commercial vehicles whose CAN bus does not provide fuel-consumption data. Requires per-vehicle pulse-value calibration.

Interested in this product?

Get in Touch

Key Features

Contactless reading of injector control pulses through wire insulation
Converts injector pulses into normalized fuel-volume-proportional pulses
Pulse output signal, frequency not more than 10 Hz
Output amplitude 0 V to on-board supply voltage
Petrol / LPG consumption monitoring for vehicles without CAN fuel data
Powered from 10-45 V on-board network
Requires per-vehicle calibration (initial pulse value 0.003 l/pulse)
Delivered with 2 A fuse and holder for power connection

Approvals & Certifications

E20 10R-04 1536CEEACISO 9001:2015

Physical Specifications

Operating Temp.-40 to +85 °CIP RatingIP30

Interested in this product?

Contact our sales team for more information.

Get in Touch

Quick Info

Brand: Technoton
Model: NozzleCrocodile
Sensor Type: Flow Meter
Interface: Pulse
IP Rating: IP30
Operating Temperature: -40 to +85 °C

Downloads & Resources

NozzleCrocodile Leaflet Crocodile Operation Manual
